Description

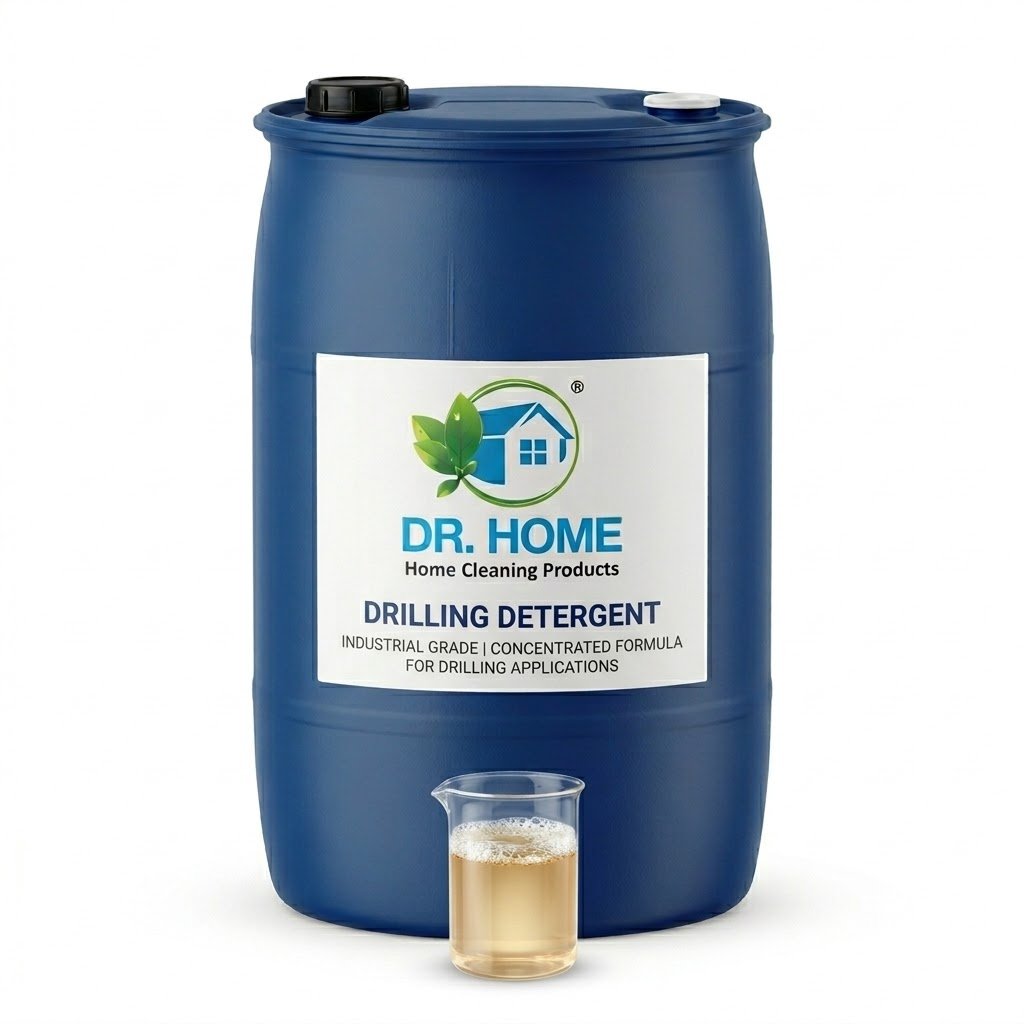

Drilling Detergent
Drilling Detergent is a specially formulated surface-active agent (surfactant) used in water-based drilling fluid systems to improve lubrication, prevent bit balling, enhance penetration rate, and improve borehole cleaning. It works by reducing surface tension at the drill bit and reducing adhesion of sticky clay and shale cuttings to drilling equipment. Drilling Detergent is an essential additive in formations prone to bit balling, high torque, and poor borehole cleaning, particularly in water-sensitive clay-rich formations.
Product Overview
Drilling Detergent is a specially formulated surface-active agent (surfactant) used in water-based drilling fluid systems to improve lubrication, prevent bit balling, enhance penetration rate, and improve borehole cleaning. It works by reducing surface tension at the drill bit and reducing adhesion of sticky clay and shale cuttings to drilling equipment. Drilling Detergent is an essential additive in formations prone to bit balling, high torque, and poor borehole cleaning, particularly in water-sensitive clay-rich formations.
Technical Specifications
| Parameter | Value |
|---|---|
| Appearance | Clear to Amber Liquid |
| Density | 0.95 – 1.05 g/cm³ |
| pH | 7.0 – 9.0 |
| Active Surfactant Content | ≥ 40% |
| Solubility | Fully miscible with water |
| Flash Point | > 60°C |
| Foam Tendency | Low |
| Temperature Stability | Up to 150°C |
Applications
Bit Balling Prevention
Reduces clay adhesion to drill bits in reactive formations
Lubrication
Reduces torque, drag, and friction in the wellbore
Borehole Cleaning
Improves cuttings transport and removal
Penetration Rate Improvement
Enhances ROP by keeping the bit clean
Clay-Rich Formations
Effective in gumbo clay and water-sensitive shale sections
Safety Information
Handling Precautions
- Avoid contact with eyes and skin
- Use appropriate PPE — gloves and safety goggles
- Keep away from ignition sources — combustible liquid
Storage Conditions
- Store in a cool, dry, and well-ventilated area
- Keep away from heat and direct sunlight
- Recommended storage temperature: 5°C – 40°C
- Shelf Life: 2 years from date of manufacture
First Aid Measures
- Eyes: Flush with water for 15 minutes; seek medical attention
- Skin: Wash with soap and water
- Inhalation: Move to fresh air
- Ingestion: Do not induce vomiting; seek medical attention
âš Mild to moderate irritant under GHS classification
⚠Combustible liquid — store away from ignition sources
⚠Combustible liquid — store away from ignition sources
Frequently Asked Questions (FAQs)
Q1. What is bit balling and how does Drilling Detergent prevent it?
Bit balling occurs when sticky clay or shale cuttings adhere to the drill bit, reducing its effectiveness. Drilling Detergent reduces surface tension and the adhesive forces between clay particles and metal surfaces, keeping the bit clean and maintaining penetration rate.
Q2. Does Drilling Detergent cause excessive foaming in the mud system?
No. Drilling Detergent is specifically formulated to be low-foaming. However, if excessive foaming is observed, a compatible defoamer can be added to the system.
Q3. Is Drilling Detergent compatible with polymer-based mud systems?
Yes. Drilling Detergent is generally compatible with PAC, CMC, XC Polymer, and other standard water-based mud additives. Compatibility testing is recommended for specific mud formulations.
Q4. What is the recommended dosage?
Typical dosage ranges from 0.5 to 3.0% by volume of the mud system depending on the severity of bit balling and the formation characteristics.
Q5. Can Drilling Detergent be used in oil-based muds?
Drilling Detergent is primarily designed for water-based mud systems. For oil-based mud applications, oil-compatible surfactants and lubricants are recommended.
Q6. What is the shelf life of Drilling Detergent?
Drilling Detergent has a shelf life of 2 years when stored in sealed containers in a cool, dry environment away from heat and direct sunlight.
