Description

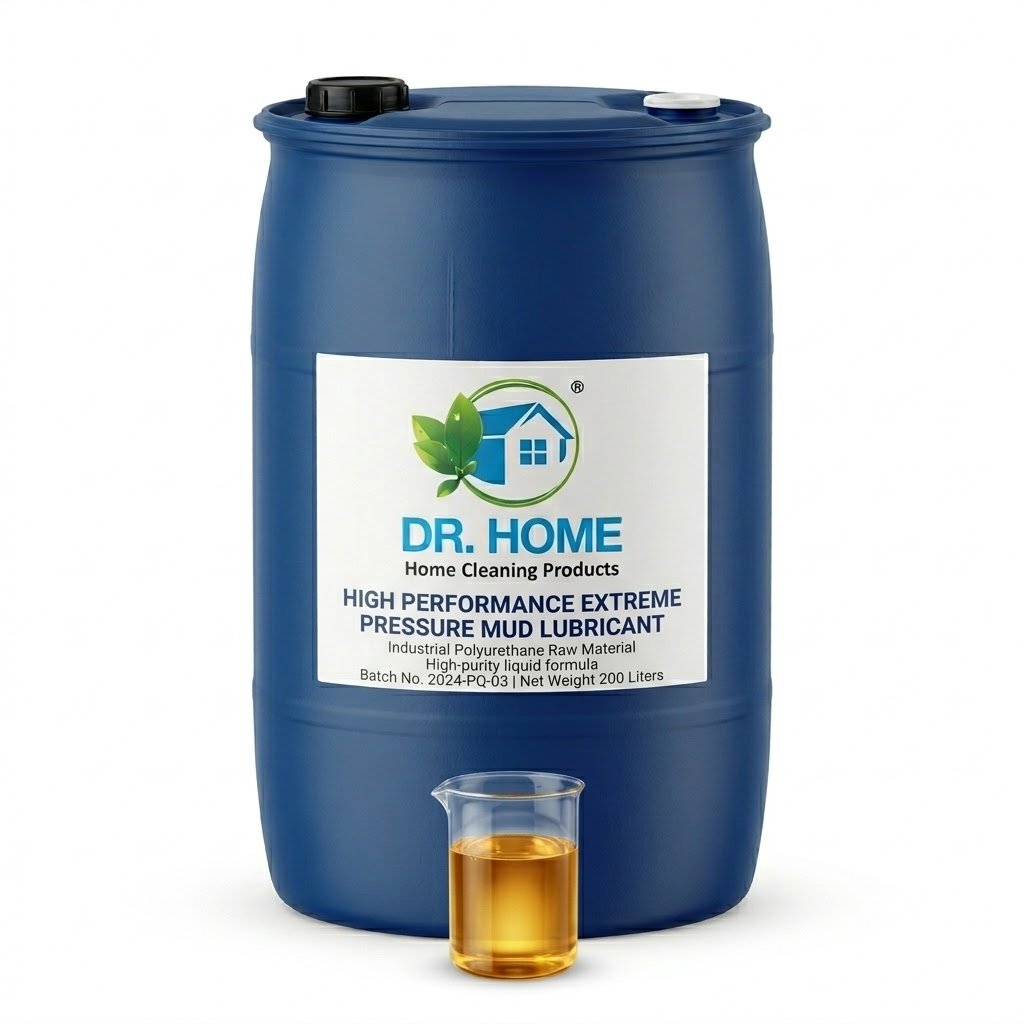

High Performance Extreme Pressure (EP) Mud Lubricant
High Performance Extreme Pressure (EP) Mud Lubricant is a premium, specially engineered lubricant additive designed for use in water-based drilling fluid systems. It significantly reduces torque, drag, and friction between the drill string and the wellbore wall or casing, particularly in high-angle, horizontal, and extended-reach drilling operations where mechanical friction is a major challenge. Unlike conventional lubricants, this product is formulated with extreme pressure (EP) additives that form a durable boundary lubricating film under high contact loads, preventing metal-to-metal contact and reducing wear on drilling equipment.
Product Overview
High Performance Extreme Pressure (EP) Mud Lubricant is a premium, specially engineered lubricant additive designed for use in water-based drilling fluid systems. It significantly reduces torque, drag, and friction between the drill string and the wellbore wall or casing, particularly in high-angle, horizontal, and extended-reach drilling operations where mechanical friction is a major challenge. Unlike conventional lubricants, this product is formulated with extreme pressure (EP) additives that form a durable boundary lubricating film under high contact loads, preventing metal-to-metal contact and reducing wear on drilling equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Appearance | Dark Brown to Black Liquid |
| Density | 0.9 – 1.1 g/cm³ |
| pH | 7.0 – 9.5 |
| Lubricity Coefficient Reduction | ≥ 70% |
| Flash Point | > 65°C |
| Active Content | ≥ 85% |
| Solubility | Dispersible in water |
| Temperature Stability | Up to 180°C |
Applications
Horizontal & Extended Reach Drilling
Reduces torque and drag in high-angle wells
Directional Drilling
Minimizes friction at drill string contact points
Casing Running Operations
Reduces friction during casing and liner running
High-Friction Formations
Effective in tight sandstone, limestone, and salt formations
Reducing Differential Sticking
Lowers the risk of pipe sticking in permeable formations
Safety Information
Handling Precautions
- Avoid contact with eyes and skin
- Use appropriate PPE — gloves, safety goggles, and protective clothing
- Keep away from ignition sources — combustible liquid
Storage Conditions
- Store in a cool, dry, and well-ventilated area
- Keep away from heat and direct sunlight
- Recommended storage temperature: 5°C – 45°C
- Shelf Life: 2 years from date of manufacture
First Aid Measures
- Eyes: Flush with water for 15 minutes; seek medical attention
- Skin: Remove contaminated clothing; wash with soap and water
- Inhalation: Move to fresh air
- Ingestion: Do not induce vomiting; seek medical attention
âš Combustible liquid under GHS classification
⚠Moderate irritant — use full PPE when handling
⚠Moderate irritant — use full PPE when handling
Frequently Asked Questions (FAQs)
Q1. What makes this lubricant “extreme pressure” rated?
EP Mud Lubricant contains special EP additive packages that chemically react with metal surfaces under high contact pressure and temperature, forming a protective sacrificial film that prevents metal-to-metal contact and galling under extreme loads.
Q2. How much can EP Mud Lubricant reduce torque and drag?
Field performance typically shows a lubricity coefficient reduction of 70% or more compared to untreated mud, significantly reducing torque readings and drag forces in horizontal and directional wells.
Q3. Is EP Mud Lubricant compatible with standard water-based mud systems?
Yes. It is compatible with most water-based mud systems including polymer muds, KCl muds, and lignosulfonate-based systems. Compatibility testing is recommended for specific formulations.
Q4. What is the recommended dosage?
Typical dosage ranges from 1 to 5% by volume of the total mud system depending on the degree of friction, wellbore geometry, and operational requirements.
Q5. Does EP Mud Lubricant affect mud weight or rheology?
At standard dosage levels, the effect on mud weight and rheology is minimal. A slight increase in plastic viscosity may be observed at higher concentrations.
Q6. What is the shelf life of EP Mud Lubricant?
EP Mud Lubricant has a shelf life of 2 years when stored in sealed containers in a cool, dry environment away from heat sources and direct sunlight.
